Lined Journal
Small-scale manufacturing of an original, sellable product
Design Concept

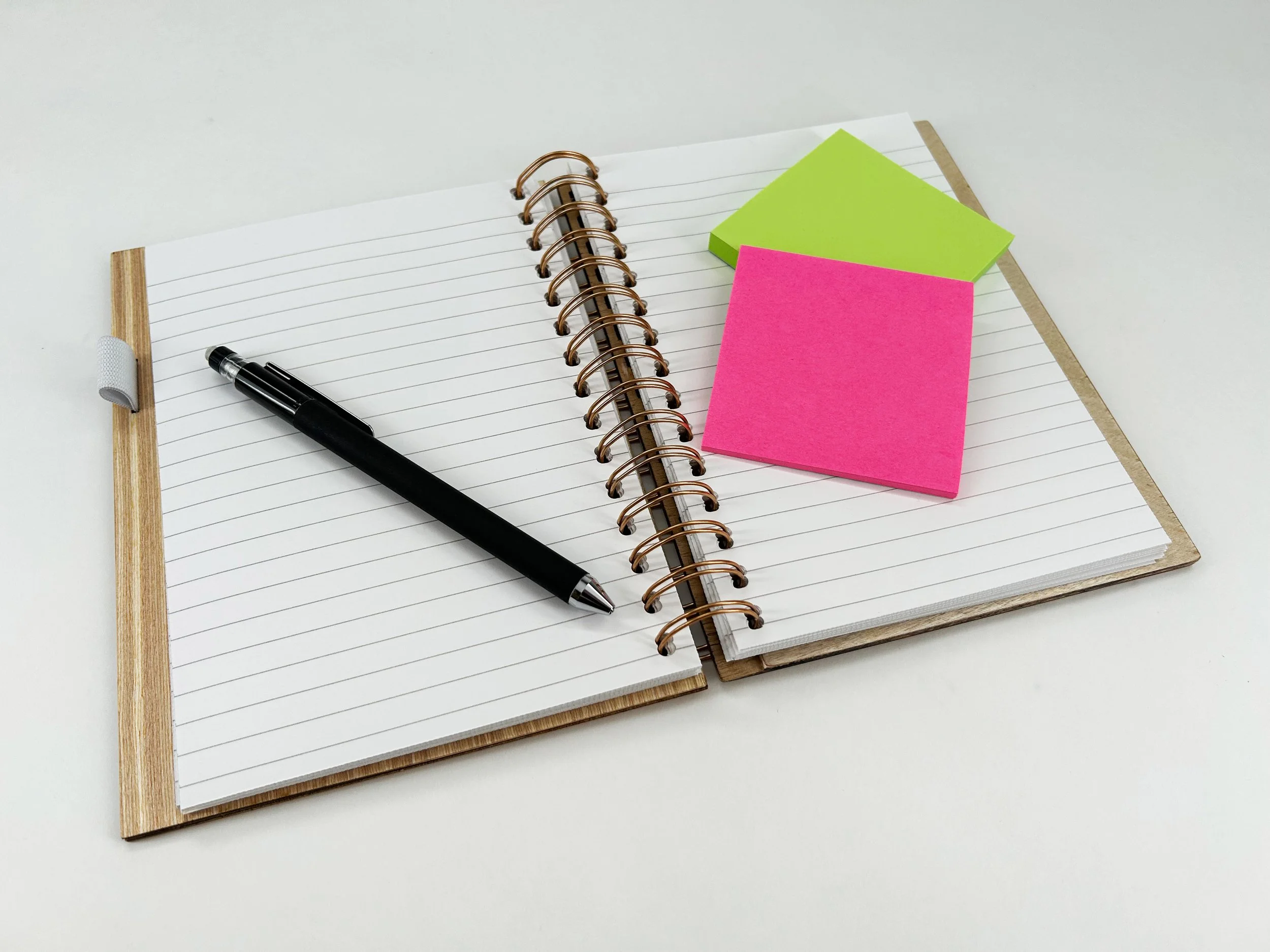

Designed with consideration for those who enjoy writing just about anywhere, this journal features hardback covers, spiral wire binding, and a spot to slip their favorite mechanical pencil. The wire-style binding allows a writer to fold their journal in half, if they please, while the covers provide a hard writing surface, and the pencil loop avails a convenient writing utensil. Additionally, the uniquely layered cover design makes this journal stand out against other writing journals.
-
Concept Sketching
initial ideation
-
Cover Design
motif exploration
-

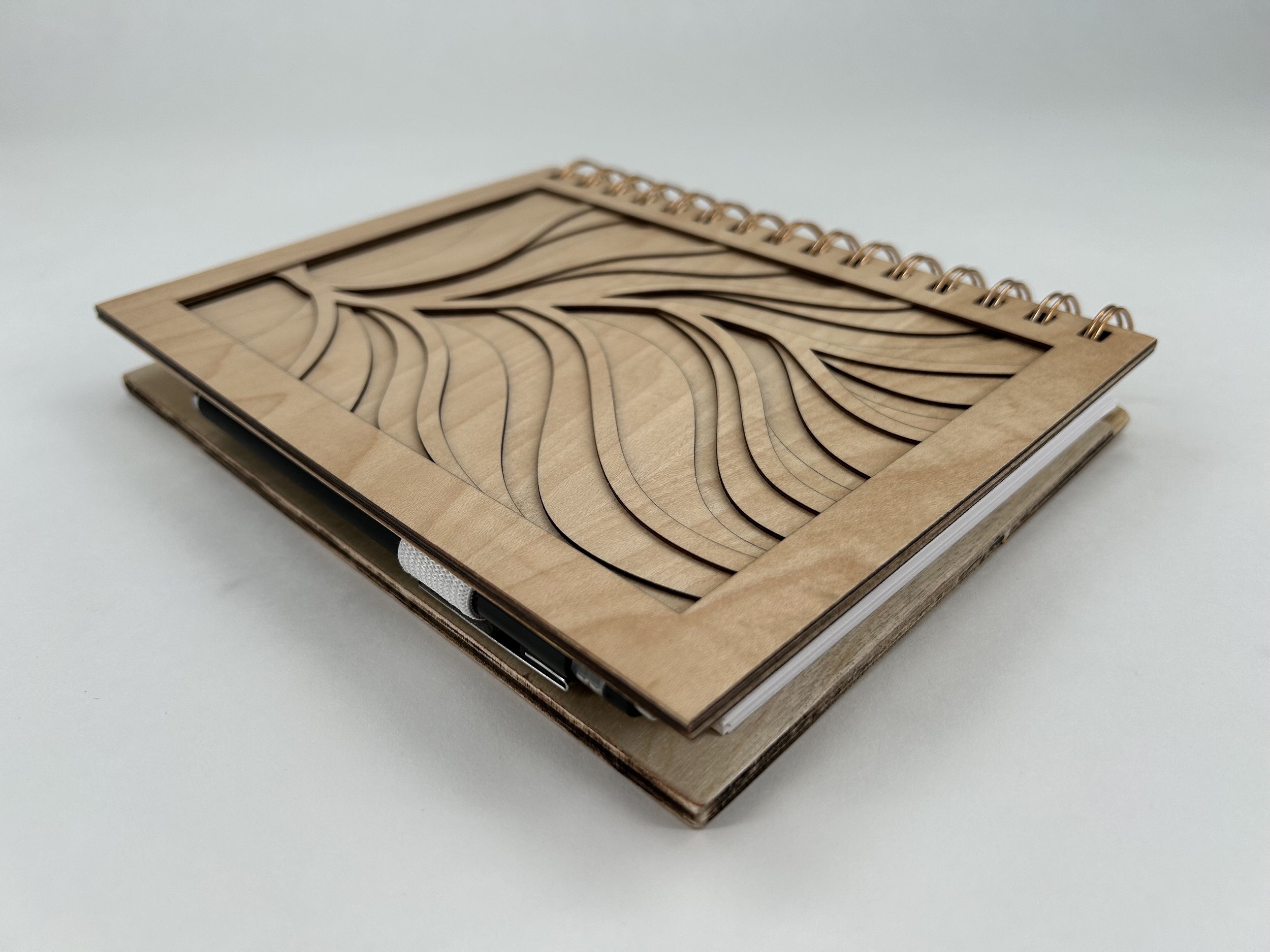

Multi-Layered Cover
concept prototyping and refining
-
Pencil Loop
position and attachment prototyping
-
Paper Block
paper selection and line design
-

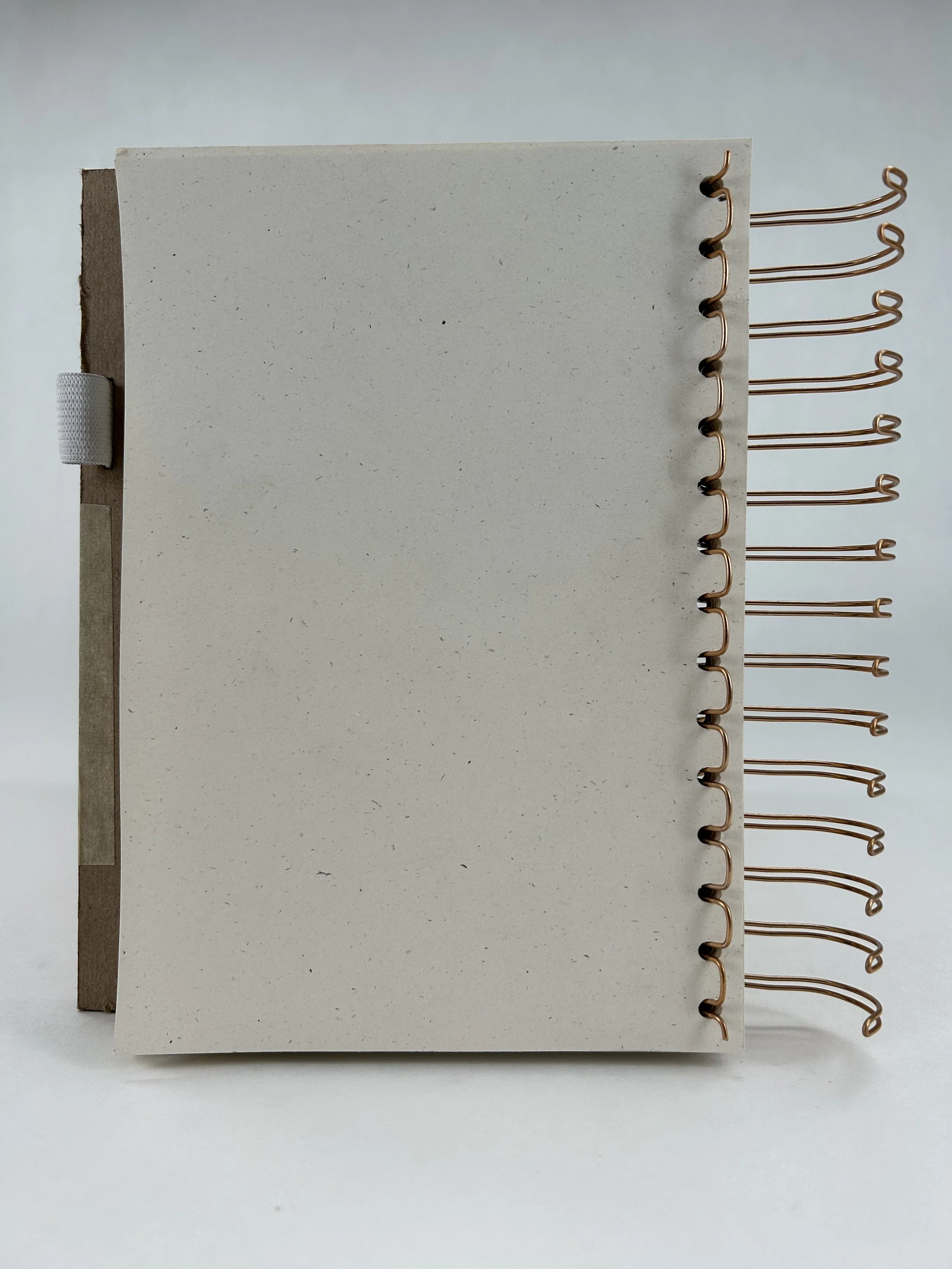

Binding
holepunch pitch and sizing
Manufacturing Process
More than developing a product concept, I designed the process to manufacture the product—as per the project’s emphasis. As proof of concept, I did a small-scale production of seven journals which I sold in a student store.
Major Manufacturing Tools Utilized
-
Full Spectrum Laser
Utilized to cut front and back covers.
-
Konica Minolta Printer
Utilized to print lined pages.
-
Band Saw
Utilized to cut paper sheets to size.
-
4:1 Pitch Hole Punch
Utilized to punch 2:1 pitch paper blocks.
Other tools included: SawStop Table Saw, Rhino 3D software, and sandpaper.
-
Laser Cut
pattern for front and back Covers
-
Dado Cut
grove to thin back cover for binding
-
Sand
edges of front and back covers
-
Clean burn dust
front and back cover binding holes
-
Assembly
of front cover
-
Fasten
pencil loop to front cover
-
Apply finish
to front and back covers
-
Print
lined paper block
-
Cut
paper block to size
-
Hole Punch
paper block
-
Bind
covers and paper block
-
Complete
Lined Journal
Manufacturing Time
Approximate time to produce a single journal:
According to the methods and tools available to me.
| Task | Time |
|---|---|
| Laser Cutting | 23 minutes |
| Front Cover Assembly | 12 minutes |
| Back Cover Assembly | 20 minutes |
| Finish Application | 8 minutes |
| Paper Printing | 8 minutes |
| Paper Block Preparation | 17 minutes |
| Journal Binding | 8 minutes |
| Total | 96 minutes |
Material Costs
Approximate material cost for mass production:
Does not includes labor cost.
| Material | Cost per unit |
|---|---|
| Maple Veneer | $3.10 |
| Birch Plywood | $0.53 |
| Lacquer Finish | $0.35 |
| 80lb Tabloid Paper | $3.06 |
| 1" Wire-O Binding | $0.90 |
| 3/4" Knit Elastic | $0.10 |
| Professional Super Glue | $0.01 |
| Total | $8.05 |

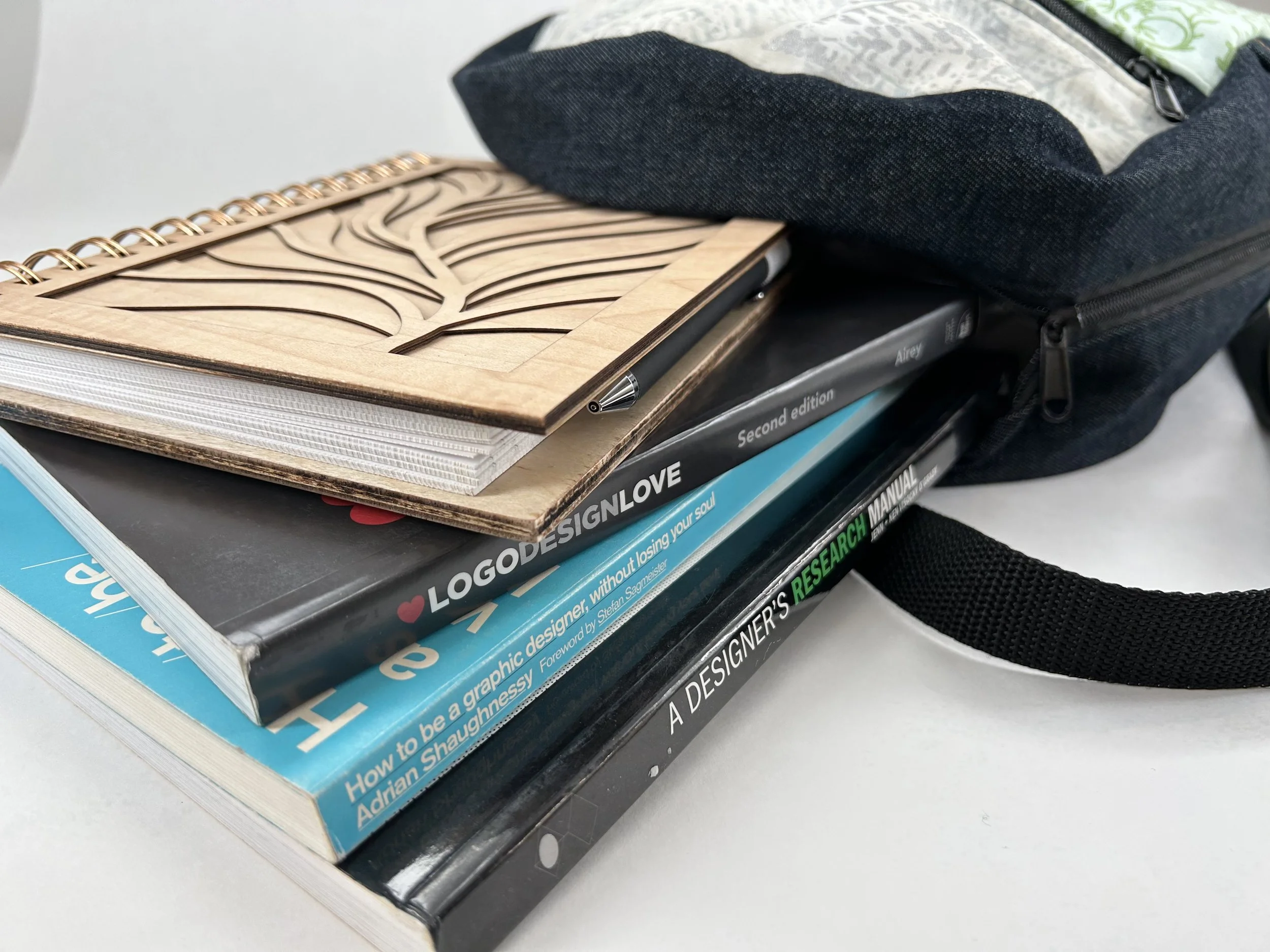

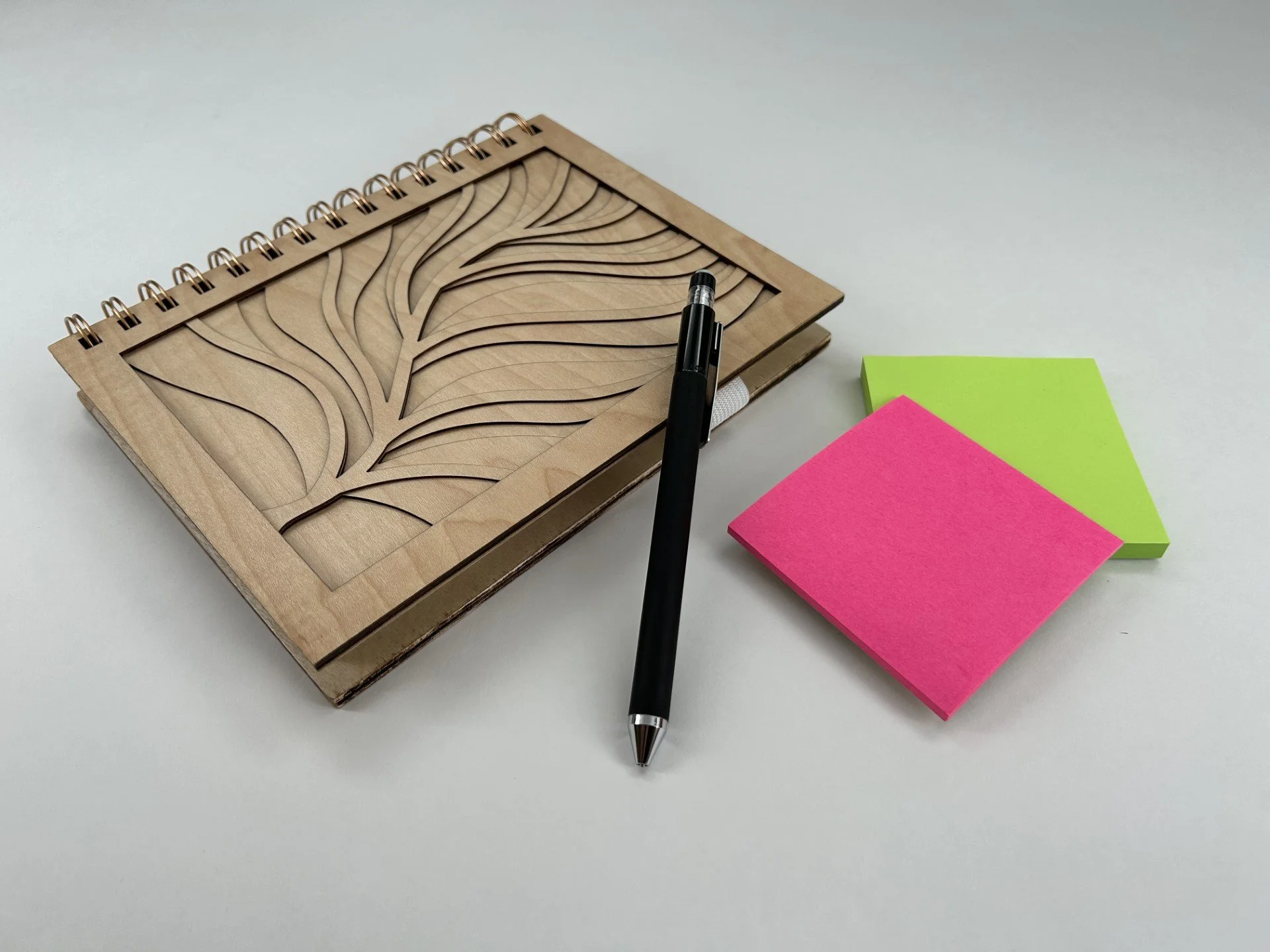

Lined Journal
Saleable Product
